New Tasmanian Digital Elevation Model

A beta version Digital Elevation Model (DEM) has been constructed for Tasmania (Australia) by MRT geoscientists Dr Claire Kain and Colin Mazengarb, including the most recent Lidar imagery captured during the 2018-19 flying season. With nearly 60% of the state now covered by Lidar, the new dataset provides an increasingly clear view of the landscape that has many applications.

The dataset was compiled initially to support two major projects being undertaken byMRT(Mineral Resources Tasmania) and other government agencies. However, as with the previous elevation model (created by the former Forestry Tasmania and shown as a hillshade image on the LIST website), the new hillshade alone provides powerful insights into the nature and origin of the landscape that is proving to be a very popular basemap.

Computational challenge

There are many geological features that are now exposed with the benefit of Lidar, such as geological structures, glacial moraines and landslides that were previously hidden under forest canopy. As indicated above, the DEM (bare earth model) is a beta version. However, it is anticipated that regular updates will follow as further elevation data becomes available. Creating the layer has been a massive computational challenge as each iteration requires considerable processing time to produce.

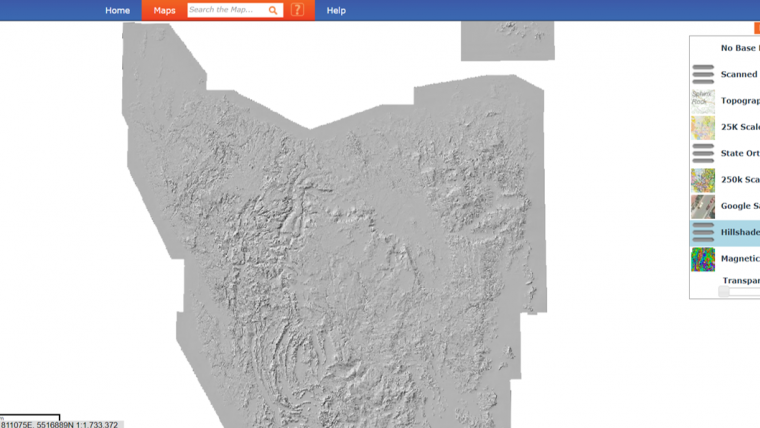

The Hillshade model is now available as a basemap on theMRT map viewer并作为WMS层(见说明website) that can be freely consumed by a GIS. Users are kindly asked to notify the MRT geoscientists of any issues that may have been missed to help them improve the next version. The current DEM has been compiled at 10m resolution and is a combination of Lidar and, where absent, conventional photogrammetric data. All the Lidar is freely available as 1km tiles (in native LAS and as bare earth DEM formats) from the ELVIS website maintained byGeoscience Australia. A 1m resolution DEM will be created in the near future.
